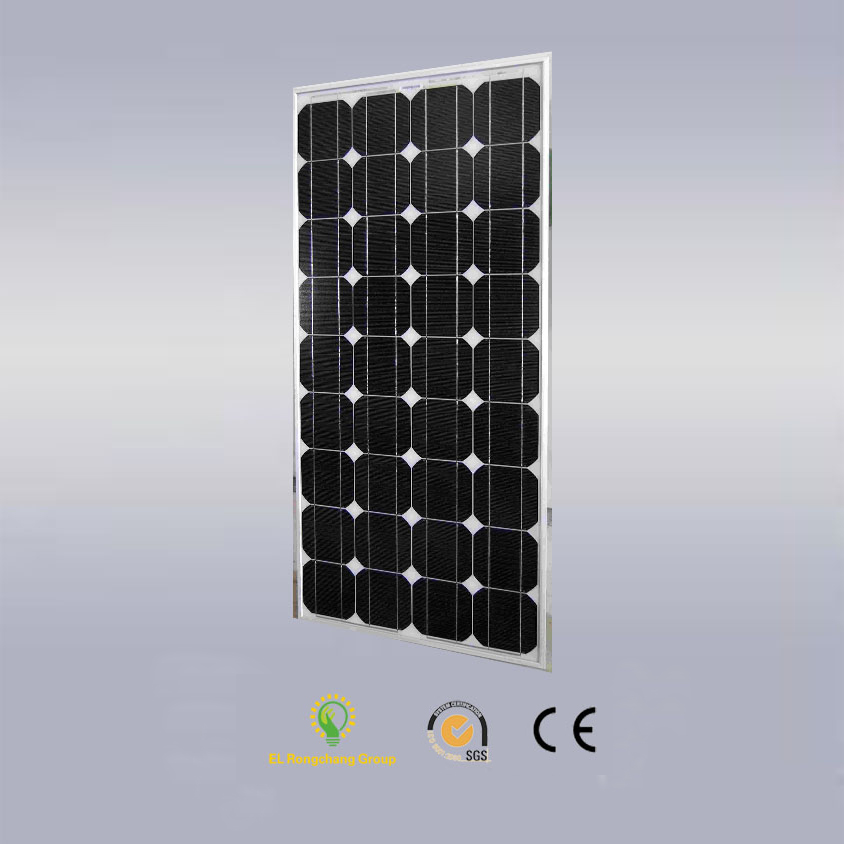

200 Watts Monocrystalline Solar Panel
| Packaging: | Strong carton |
|---|---|
| Productivity: | 10000 pcs /per year |
| Brand: | ERG |
| Transportation: | Ocean,Land,Air,Express,Express |
| Place of Origin: | china |
| Supply Ability: | 10000 pcs /per year |
| Certificate: | CE |
| HS Code: | 85414020 |
| Port: | Shanghai,Ningbo,Shenzhen |
Basic Info
Model No.: ERG-200M
Product Description
Rongchang Grade A Solar panel
-----200W Watts Monocrystalline Solar Panel
Mono and Poly Solar Panel are the popular in solar systems.ERG-200M (200 Watts Mono Solar Panel,the Solar Panels for home or construction) 10 Years Warranty and over 25 years life span, Grade A cells, uniform color cells, flat TPT, high efficiency modules, free OEM in sticker and your brand inside panel glass, 7 - 14 days lead time and over 5MW per month production capacity.
Solar Mono Panel Electrical Parameters
Maximum power(Pm) 200W
Positive tolerance ±3%
Maximum power voltage (Vm) 23.95V
Maximum power current (Imp) 8.35A
Open circuit voltage (Voc) 30.13V
Short circuit current (Isc) 8.91A
Cell efficiency 17.6%
Module efficiency 15.3%
Monocrystalline Solar Cell Mechanical Parameters
Size of module 1320*992 mm
Anodized aluminum frame, 35mm thickness
Number of cells 36 pcs
Size of cells 156*156mm
15.3Kg, IP 65 junction box certified TUV
Product Categories : Solar Panel > Monocrystalline Solar Panel
